MPD Equipment and Technology
Managed pressure drilling (MPD) is an advanced drilling technique used in the oil & gas industry to precisely control annular pressure throughout the wellbore. The key equipment of MPD including choke manifold and RCD. The choke manifold and RCD equipped in the MPD equipment developed and manufactured by Heminzenith are both fully electronically controlled.
Main Technical Parameters
Fully Electronically Controlled Automatic Choke Manifold
|
NEWFully Electronically Controlled Automatic Choke Manifold
| |||||
|---|---|---|---|---|---|
| Series | IPC-D-E Series | ||||
| Pressure Grade | 35Mpa (5000psi) | 70Mpa (10000psi) | 105Mpa (15000psi) | 140Mpa (20000psi) | |
| Rated Working Pressure | 0-17.5Mpa (2500psi) | 0-49Mpa (7000psi) | 0-89Mpa (12700psi) | 0-112Mpa (16000psi) | |
| Rated Operational Voltage | AC 220V, equipped with backup UPS power supply. | ||||
| Product Weight | 10-15.5 ton | ||||
| Product Size (mm) | L4500mm × W2450mm × H2481mm | ||||
| Maximum Diameter (mm) | 103mm (4 1/16") | 78/103mm (3 1/16" / 4 1/16") | |||
| Channel Modes | Two automatic channels (compatible with manual mode), one ESD channel (for Emergency Shut-Down). Note: The materials and diameters of the choke valves and gate valves involved in the choke manifold can be customized according to customer requirements. |
||||
Main Technical Parameters
Fully Automatic Choke Manifold
|
Fully Automatic Choke Manifold
| |||||
|---|---|---|---|---|---|
| Series | IPC Series | ||||
| Pressure Grade | 35Mpa (5000psi) | 70Mpa (10000psi) | 105Mpa (15000psi) | 140Mpa (20000psi) | |
| Rated Working Pressure | 0-17.5Mpa (2500psi) | 0-49Mpa (7000psi) | 0-89Mpa (12700psi) | 0-112Mpa (16000psi) | |
| Rated Operational Voltage | AC 220V, 50HZ, equipped with backup UPS power supply. | ||||
| Product Weight | 13-16.5 ton | ||||
| Product Size (mm) | L6000mm × W2430mm × H2478mm | ||||
| Maximum Diameter (mm) | 103mm (4 1/16") | 78/103mm (3 1/16" / 4 1/16") | |||
| Channel Modes | Two automatic channels, one ESD channel and one manual channel. Note: The materials and diameters of the choke valves and gate valves involved in the choke manifold can be customized according to customer requirements. |
||||
RCD Technical Parameters
| Product Model | Hydraulic Controlled |
New Fully Electronically Controlled
| |||
|---|---|---|---|---|---|
 |  | ||||
| Static Working Pressure | 35Mpa (5000psi) | 35Mpa (5000psi) | 70Mpa (10000psi) | 105Mpa (15000psi) | 140Mpa (20000psi) |
| Working Pressure (@100RPM) | 0-17.5Mpa (2500psi) | 0-17.5Mpa (2500psi) | 0-49Mpa (7000psi) | Under Development | |
| Operating Temperature | -25℃ to 120℃ | -25℃ to 120℃ | |||
| Lower connection | API standard 13 5/8" flange | API standard 13 5/8" flange | |||
| Maximum shell diameter | 346mm | 346mm | |||
| Outlet connection flange | API standard 7 1/16" | API standard 7 1/16" | |||
| Mud injection port connection | 2" FIG1502 | 2" FIG1502 | |||
| Applicable power supply | 380V AC, cable length 50m | 380V AC, cable length 50m | |||
| Control mode | RCD Control Room | Choke Manifold, Remote Control Room | |||

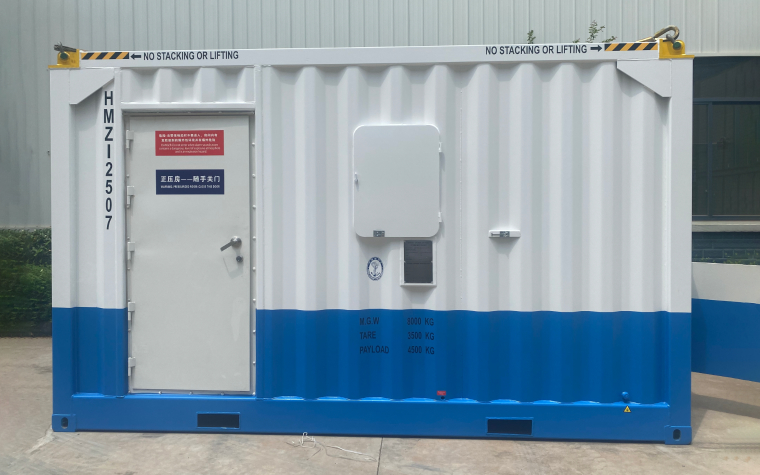

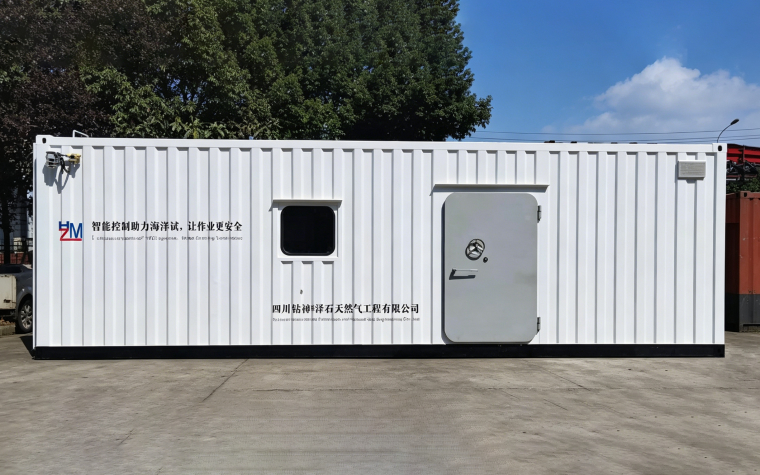

Data Monitoring and Control Systems
One of the supporting equipment for the automatic choke manifold is primarily used for receiving real-time data from mud logging and the automatic choke manifold, monitoring and analyzing these data. Based on data models, it provides real-time warnings for downhole conditions and issues commands to the automatic choke manifold through the choke manifold control system of this center, thereby enabling real-time control of the surface casing pressure.
Externally Mounted: Explosion-proof surveillance camera, used for observing the operation status of the rotary control head at the wellbore and the condition of the ignitor.
Internally Installed: Detecting and early warning software, automatic choke manifold control software, video recording software, etc.
